CT5-V Any Factory Service Manual Questions?

[poor-sha]

I went ahead and paid for the 3-day access to the online service manuals since I needed it for something on the C7. Does anyone have anything they want me to look up while I have access?
ACDelco TDS

I did check out the alignment procedure and the only thing I found surprising is that the eccentric bolts in the rear are single use. They say to replace them every time you align the car.



[ajamils]

Does it list the location or pin-out for the stereo wiring, where a sub can be added? In my SS, it was on the right side of the trunk.



[poor-sha]

Does it list the location or pin-out for the stereo wiring, where a sub can be added? In my SS, it was on the right side of the trunk.

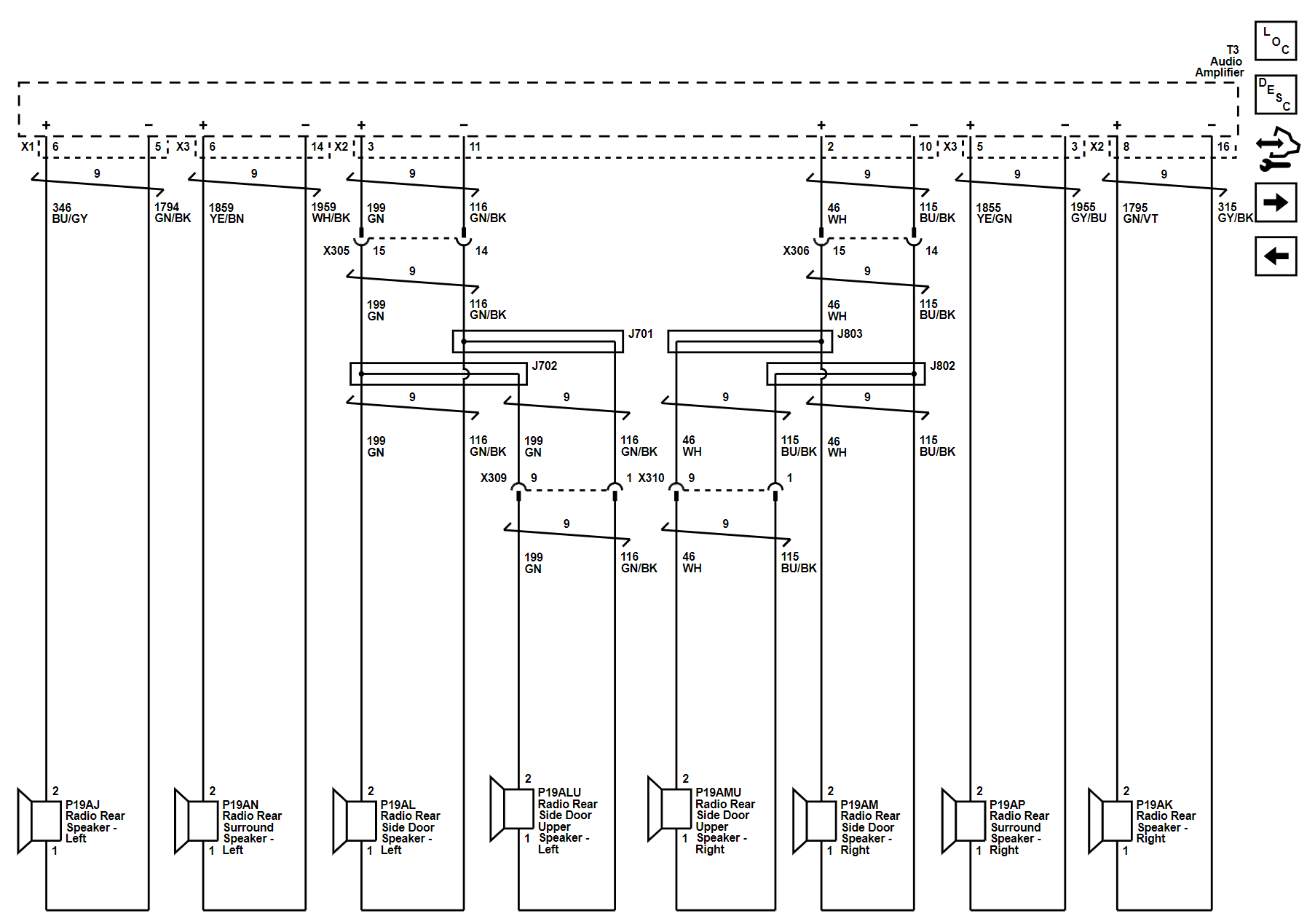

This is the rear speaker wiring but there is no mention of a sub.



[DustinEarnhardt]

Is there by chance a picture or diagram of the rear spoiler attachment to the trunk lid?

I'm going to get the body-matched spoiler from the accessories catalog to replace the factory one. I didn't get the CF packages, so mine is just black plastic which I'm not totally loving the look of. Plus, it'll help my with "sleeper" look.

This is the kit for Satin Steel: 2020-2021 Cadillac CT4 Spoiler Kit 84830020 | GM Parts Center

Curious to know if the bolt holes line up.



[Daijoubu]

Speaking of alignment. Do they list track use alignment specs?



[Akamai58]

Is there by chance a picture or diagram of the rear spoiler attachment to the trunk lid?

I'm going to get the body-matched spoiler from the accessories catalog to replace the factory one. I didn't get the CF packages, so mine is just black plastic which I'm not totally loving the look of. Plus, it'll help my with "sleeper" look.

This is the kit for Satin Steel: 2020-2021 Cadillac CT4 Spoiler Kit 84830020 | GM Parts Center

Curious to know if the bolt holes line up.

Go to gmpartsdirect to get a better price on it.



[poor-sha]

Speaking of alignment. Do they list track use alignment specs?

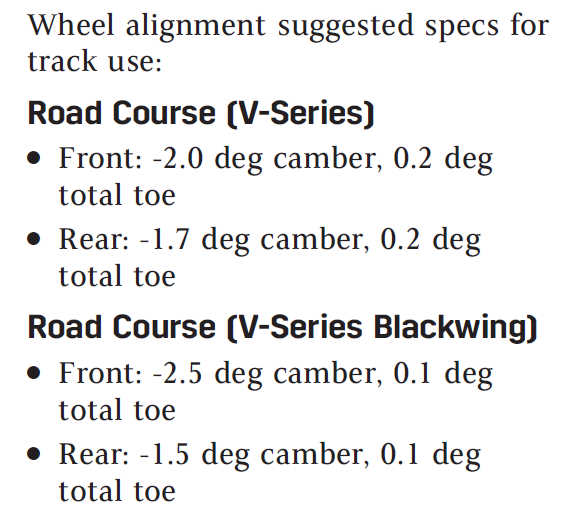

I didn't see it in the service manual but it is in the owners manual.



[poor-sha]

Is there by chance a picture or diagram of the rear spoiler attachment to the trunk lid?

I'm going to get the body-matched spoiler from the accessories catalog to replace the factory one. I didn't get the CF packages, so mine is just black plastic which I'm not totally loving the look of. Plus, it'll help my with "sleeper" look.

This is the kit for Satin Steel: 2020-2021 Cadillac CT4 Spoiler Kit 84830020 | GM Parts Center

Curious to know if the bolt holes line up.

They don't and as best I can tell the base spoiler is just held on with adhesive tape. There is a several page instruction sheet that comes with that kit as well as a template for drilling. It talks about drilling 7 holes after you remove the factory splitter. Here's the pic of the template in the online version of the instructions but as you can see it's not very legible.



[poor-sha]

Go to gmpartsdirect to get a better price on it.

Partially depends on where you live. I've found that being in the Mid-Atlantic gmpartsnow is a touch more expensive but more than makes up for it with lower shipping. YMMV.



[DustinEarnhardt]

They don't and as best I can tell the base spoiler is just held on with adhesive tape. There is a several page instruction sheet that comes with that kit as well as a template for drilling. It talks about drilling 7 holes after you remove the factory splitter. Here's the pic of the template in the online version of the instructions but as you can see it's not very legible.

View attachment 4341

Thanks for checking @poor-sha !

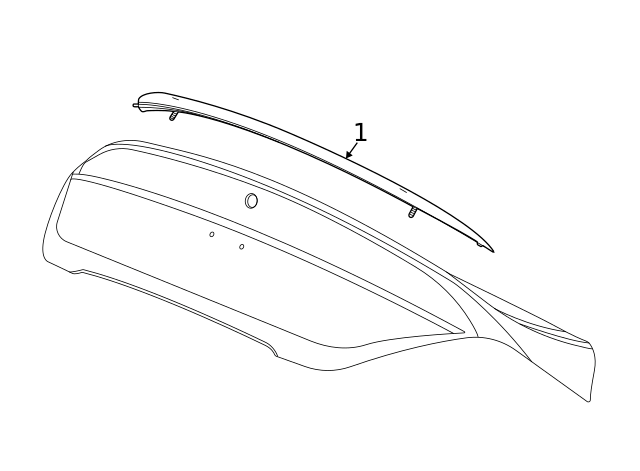

The picture of the spoiler on the gmpartsnow site shows two bolt holes.

I'm not super keen on drilling new holes, but I have no idea how the OEM BW spoiler mounts. Looks like I'll be doing some exploratory surgery on mine when I get it!

I'm planning on doing the monochrome Cadillac emblems too, so I was going to be pulling off the finishing panel from the trunk lid anyway.



[rdollie]

I went ahead and paid for the 3-day access to the online service manuals since I needed it for something on the C7. Does anyone have anything they want me to look up while I have access?
ACDelco TDS

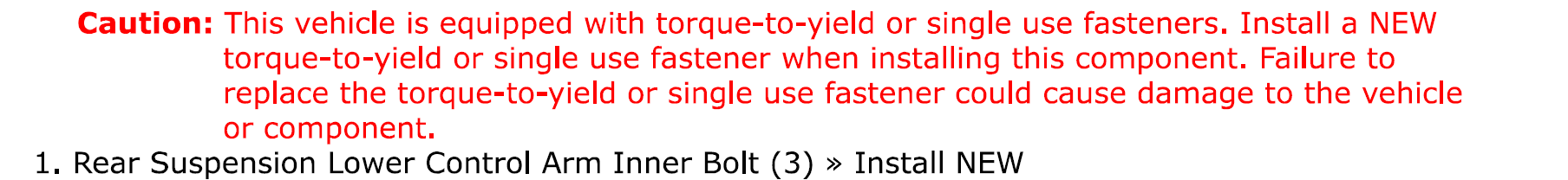

I did check out the alignment procedure and the only thing I found surprising is that the eccentric bolts in the rear are single use. They say to replace them every time you align the car.

View attachment 4336

Wouldn't happen to have a part number for those bolts would you?

Thx!



[poor-sha]

Wouldn't happen to have a part number for those bolts would you?

Thx!

I don't. For some reason the TDS subscription doesn't give you parts diagrams. I'd kill for a good online parts lookup as the one most of the parts sites use is lacking.



[Drozboyz]

I went ahead and paid for the 3-day access to the online service manuals since I needed it for something on the C7. Does anyone have anything they want me to look up while I have access?
ACDelco TDS

I did check out the alignment procedure and the only thing I found surprising is that the eccentric bolts in the rear are single use. They say to replace them every time you align the car.

View attachment 4336

Jacking points on the 5



[Drozboyz]

Jacking points on the 5

Many thanks



[poor-sha]

Sorry I accidentally deleted my first reply.

Looks like you have two options in the front. Either on the sides or use the front cross-member.

In the rear it's just the sides.



[rdollie]

Hard to tell from the diagram on jacking points, but are sides pinch welds like the Alpha I variant?



[poor-sha]

Hard to tell from the diagram on jacking points, but are sides pinch welds like the Alpha I variant?

It doesn't look like it from the picture but there are these two notes

Front
When lifting the vehicle with a frame-contact lift, position the pad as close as possible to the rocker molding cutout.

Rear
When lifting the vehicle with a frame-contact lift, place the rear lift pads on the body flange, so it covers both edges of the brace, as close to the rocker cutout as possible.



[IMSA-01-fan]

@DustinEarnhardt That's cool I also ordered a satin steel with sleeper look.



[IMSA-01-fan]

@ajamils For my SS I found the aftermarket plug that went between the amp and the factory wiring. it was great to splice without messing with the factory wires. They were really hard to find though a couple years ago. That head unit not being upgradable to new tech is one of the only downfalls of that car.



[CT5-Voraus]

Sorry I accidentally deleted my first reply.

Looks like you have two options in the front. Either on the sides or use the front cross-member.

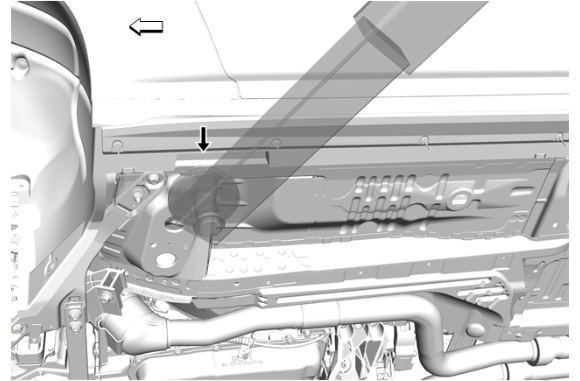

View attachment 4351

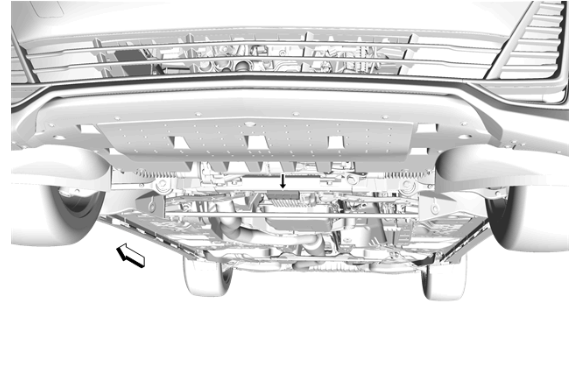

View attachment 4352

In the rear it's just the sides.

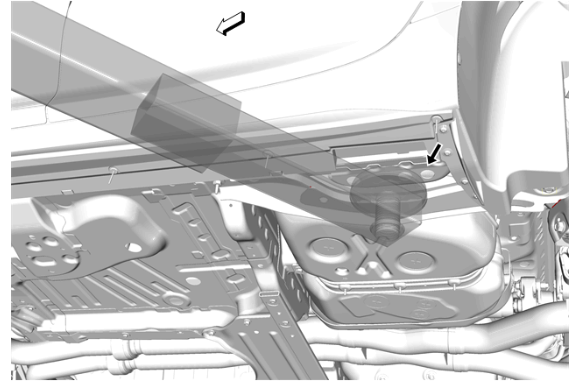

View attachment 4353

In regard to the front cross-member, the video shows a metal sheet covering the cross-member. Will a floor jack damage the metal sheet or will it need to be removed?
